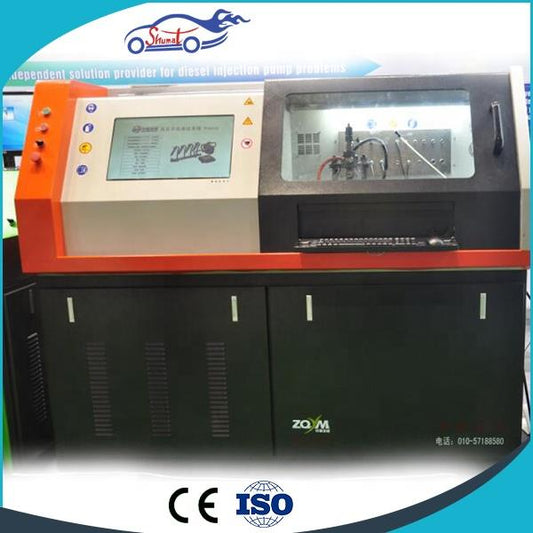

Common Rail Diesel Injector/Pump Repair ZQYM618C Diesel Pump Calibration Machine
سعر عادي $23,690.00 سعر المبيعات $14,999.00
Common Rail Diesel Injector/Pump Repair ZQYM618C Diesel Pump Calibration Machine
Can supply 1,000 units per month to all over the world
618C is a solution for common rail pump and injection test bench. it is an easy solution for a big diesel problem. As the No1 common rail test bench brand in china, it will be all workshop smart choice with the least investment, guaranteeing highest return.
618C is designed to be able to test all types of EURO III, EURO IV CR injectors and pumps automatically. Including Bos ch, Del phi, Denso, Siemens CAT type inline CR injectors and pumps system data plans, and it features in complete test data. Software and database is upgraded periodically and new models, types or new makes common rail injectors are included as they appear in the market.
618C common rail injection pump tester with basic features which enough start repairing injector pumps with minimum investment. It will be fully meet repair requirement. It use industrial level quality configuration , and the important parts imported from BOS CH Germany and other famous brand worldwide. Its database including thousands of oil pump and injector data. All these data is completely match with original standard data. We give 3 years warranty, and software enjoy free update lifetime. With the data self learn and data add automatically function, you can DIY any kind of data adjust and finish all kinds of systems test accordingly. This Test Plan Calibrator module to enable users even no experience to create test plans for new injectors & pumps.
Our commission is provide effectively service at competitive price to our cooperator. ZQYM keeps to be Independent solution provider for diesel injection problems!
Features Of Diesel Injector Test Bench ZQYM618C:
1. It is designed to be able to test all types of CR Pumps, including Denso HP0 and Bos ch HP3pump, EUP,EUI and piezo-electric crysta injector test.
2. 7 degree Euro III standard oil filter: accuracy reaches 2 μm
3. User friendly DIY, reset and adjust data plans data make it application for all kinds of oil pump and injector.
4. 3 steps protection of wrong use making test life easy to understand and help to save a lot.
5. Complete Automatic Testing, results are show with easy to understand test report.
6. Precise test data report and good quality base on main parts imported from original Bos ch, Cobb, and Italy brand parts.
7. Latest version control software and drivers, free update lifetime
8. High stability, product will be go with 1000 hours pressure test before ship. We already have more than 5000 users in Chinese market.
9. ZQYM has training shop and 24 hours after sales service support. We supply Repair manuals for repairing various common rail injectors and pumps.
Benefits for EUI EUP Common rail Injector pump test bench/tester
1. Five injector stander data came from Injector tightness test, Injector full load test, fuel injector oil-return testing, injector idle test, pre-spray injector test can be tested within five minutes.
2. Pump test can be finished within 4 minutes, pump testing items contain pump full load test, pump start-up test, pump load test, oil pump solenoid valves and metering valve test, pump standard data. EUI / EUP testing project contains EUI / EUP full load test, EUI / EUP in the load test, EUI / EUP idle test, EUI / EUP start the test, EUP / EUI standard data .
3. Piezoelectric crystal injector test five data of injector within five minutes, injector tightness
test, fuel injector full load test, fuel injector oil-return test, injector idle test .
4. DIY data increases, testing reports, storage of test reports, customization oftest report, poor reports, system error codes, tips of maintenance.
Technical Specifications Of Common Rail Diesel Injector/Pump Repair ZQYM618C:
1. Important Components Of Common Rail Tester ZQYM618C |
|
High-pressure pump |
Original BOS CH CP3H pump |
Common rail tube |
Original BOS CH |
Common rail pressure Sensor |
Original Bos ch Sensor |
Fuel metering valve |
Original Bos ch Valve |
Common Rail PressureSystem |
Max 2200bar |
Flow sensor |
Original Germany KOBO |
InjectorFlow sensor |
≥700 ml/min |
Pump Flow sensor |
≥3000 ml/min |
Injector Flow sensor accuracy |
0.5 ‰ |
Pump Flow sensor accuracy |
1‰ |
Flow sensor |
2 pcs |
Passage switching solenoid valve |
2 pcs made in Italy |
DRV valve |
original BOS CH 0281002507 |
Rail Fuel pressure set-up time |
3 sec |
Quick start |
Yes |
2. Software system Of Common Rail Test Bench ZQYM618C |
|
Injector Quick test |
5 min |
Injector Test Projects |
5 |
Injector Sealing test |
Yes |
Injector Max test |
Yes |
Injector Back flow |
Yes |
Injector idle test |
Yes |
Preinjection test |
Yes |
Injector Data |
Yes |
Pump Quick test |
4 min |
Pump Test Projects |
4 |
Pump Max test |
Yes |
Pump Start test |
Yes |
Pump medium test |
Yes |
Solenoid valves and pumps metering valve test |
All SCV, PCV IMV ZME valves |
Pump Data |
Yes |
EUI/EUP Test Projects |
4 |
EUI/EUP Max test |
Yes |
EUI/EUP medium test |
Yes |
EUI/EUP idle test |
Yes |
EUI/EUP Start test |
Yes |
EUP/EUI Data |
Yes |
Piezoelectric crystal injectors |
support |
EUP/EUI |
yes |
HP0 |
Support |
Auxiliary Repair Tools |
Optional |
DIY Data |
Support |
Test report |
support |
Test report save |
yes |
Test report Customization |
yes |
Adverse Report |
support |
trouble code |
Support |
Maintenance Remind |
Support |
Screen Show |
19 inch LED display shows the inspection process, operation, test reports, bug reports |
3. Host control section Of CRS Nozzle Testing Machine ZQYM618C |
|
Chipset |
Intel ARM X9 |
USB port |
4 |
VGA port |
1 |
Operating system |
WindsCE |
Design standards |
Industrial control standards |
1000 hours pressure test |
Yes |
4. System filtration and protection Of Diesel Tester Bench ZQYM618 |
|
Clogging reminder system |
Yes |
Filters |
7 |
primary standard Filter |
2, Euro III standard |
secondary standard Filter |
5 ,Euro III standard |
Cooling method |
2 synchronous cooling |
Cooling system power |
160W |
Fuel Cooling method |
Electric cooling fan blades |
Radiator numbers |
2 sets |
Fuel tank |
Combined automatical classified tank |
Main tank capacity |
45L |
Auxiliary fuel tank |
10L |
5. Ancillary apparatus Of Common Rail Test Equipment ZQYM618C |
|
Host voltage |
220V/380V |
Motor power: |
11kw |
Low pressure oil motor power |
1.5kw |
inverter |
11kw |
Stabilizer |
500VA |
Work Lights |
Yes |
mist eliminator |
Yes |
Access Switch for test chamber |
Yes |
Display |
19 inch LED screen |
6. Aids tool Of Injector Pump Test Bench ZQYM618C |
|
Injector Test Fixture |
Yes |
Oil collector |
Yes |
7. Update and warranty Of Test Bench for Diesel Guel injection Pumps ZQYM618C |
|
Update method |
U disk update |
Warranty |
3 years |
Data add |
DIY manually add and U disk update |
Upgrade deadline |
Lifetime Free |
8. Common Rail Injector pump Test Bench ZQYM618C |
|
Dimensions |
1900*830*1600mm |
GW |
850KG |
NW |
800KG |
Packing |
Environmentally friendly packaging, export fumigation wooden plywood |
