Diesel Fuel Injection Pump Calibration Machine High Pressure Common Rail Fuel Testing Bench
Can supply 400 units per month to all over the world

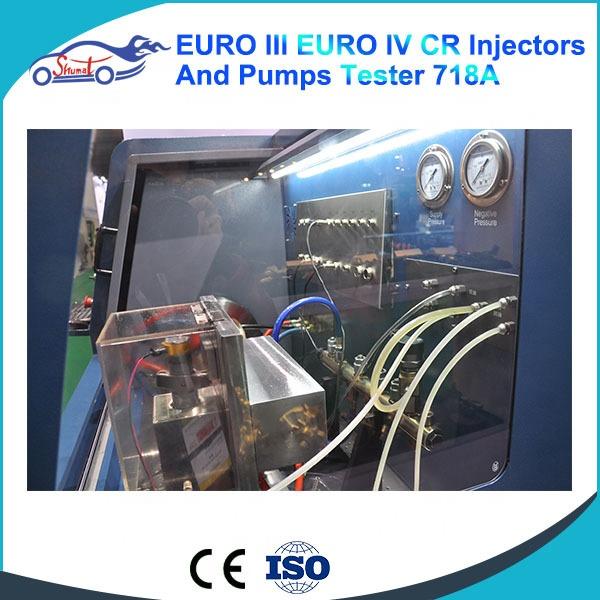

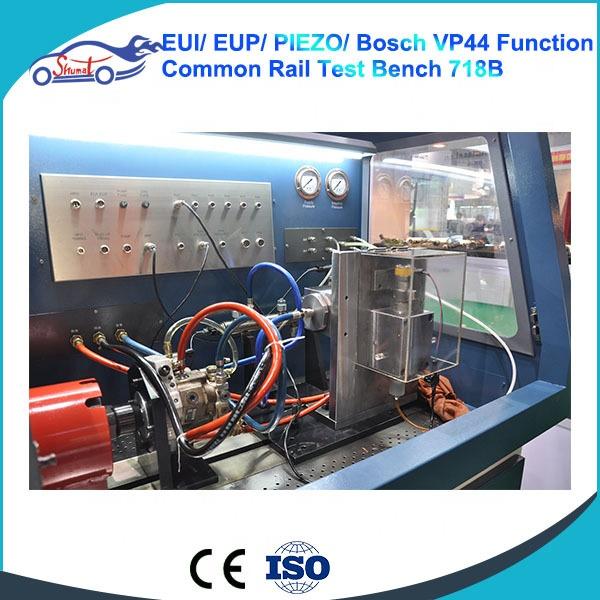

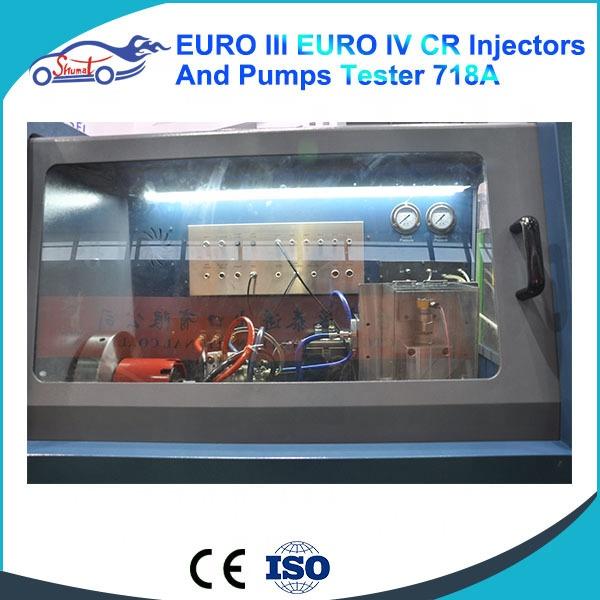

Overview to ZQYM 718 diesel fuel pump injector tester
It is designed to be able to test all types of EURO III, EURO IV CR injectors and pumps automatically. Including Bos ch, Del phi, Denso, Siemens, and EUI / EUP function, Piezo-electric crysta injector test with full set Aids tool, it features in complete test data. Software and database is upgraded periodically, and new models, types or new makes common rail injectors are included as they appear in the market.
Features Of 718 tester with EUI EUP Piezo testing function
1. It is designed to be able to test all types of CR Pumps, including Denso HP0 and BOS CH HP3pump, EUP,EUI, test and piezo-electric crysta injector test.
2. 7 degree Euro III standard oil filter: accuracy reaches 2 μm
3. User friendly DIY, reset and adjust data plans data make it application for all kinds of oil pump and injector.
4. 3 steps protection of wrong use making test life easy to understand and help to save a lot.
5. Complete Automatic Testing, results are show with easy to understand test report.
6. Precise test data report and good quality base on main parts imported from original BOS CH, Cobb, and Italy brand parts.
7. Latest version control software and drivers, free update lifetime
8. High stability, product will have a 1000 hours pressure test before ship. We already have more than 5000 users in Chinese market.
9. ZQYM has training shop and 24 hours after sales service support. We supply Repair manuals for repairing various common rail injectors and pumps.
Advantages for common rail test bench 718
1. Five injector stander data came from Injector tightness test, Injector full load test, fuel injector oil-return testing, injector idle test, pre-spray injector test can be tested within five minutes.
2. Pump test can be finished within 4 minutes, pump testing items contain pump full load test, pump start-up test, pump load test, oil pump solenoid valves and metering valve test, pump standard data. EUI / EUP testing project contains EUI / EUP full load test, EUI / EUP in the load test, EUI / EUP idle test, EUI / EUP start the test, EUP / EUI standard data
3. Piezoelectric crystal injector test five data of injector within five minutes, injector tightness test, fuel injector full load test, fuel injector oil-return test, injector idle test
4. DIY data increases, testing reports, storage of test reports, customization of test report, poor reports, system error codes, tips of maintenance.
Important specification for 718 pump injector tester
|
1. Important components Of Injector Fuel Pump Tester ZQYM 718A |
|
|
High-pressure pump |
Original B OSCH CP3H pump |
|
Common rail tube |
Original B OSCH |
|
Common rail pressure Sensor |
Original B osch Sensor |
|
Fuel metering valve |
Original B osch Valve |
|
Common Rail PressureSystem |
Max 2200bar |
|
Flow sensor |
Original Germany VSE |
|
InjectorFlow sensor |
≥700 ml/min |
|
Pump Flow sensor |
≥3000 ml/min |
|
Injector Flow sensor accuracy |
0.5 ‰ |
|
Pump Flow sensor accuracy |
1‰ |
|
Flow sensor |
2 pcs |
|
Passage switching solenoid valve |
2 pcs made in Italy |
|
DRV valve |
original B OSCH 0281002507 |
|
Rail Fuel pressure set-up time |
3 sec |
|
Quick start |
Yes |
|
2. Software system of CRS Nozzle Testing Machine ZQYM 718A |
|
|
Injector Quick test |
5 min |
|
Injector Test Projects |
5 |
|
Injector Sealing test |
Yes |
|
Injector Max test |
Yes |
|
Injector Back flow |
Yes |
|
Injector idle test |
Yes |
|
Preinjection test |
Yes |
|
Injector Data |
Yes |
|
Pump Quick test |
4 min |
|
Pump Test Projects |
4 |
|
Pump Max test |
Yes |
|
Pump Start test |
Yes |
|
Pump medium test |
Yes |
|
Solenoid valves and pumps metering valve test |
All SCV, PCV IMV ZME valves |
|
Pump Data |
Yes |
|
EUI/EUP Test Projects |
4 |
|
EUI/EUP Max test |
Yes |
|
EUI/EUP medium test |
Yes |
|
EUI/EUP idle test |
Yes |
|
EUI/EUP Start test |
Yes |
|
EUP/EUI Data |
Yes |
|
Piezoelectric crystal injectors |
Support |
|
EUP/EUI |
Support |
|
HP0 |
Support |
|
Auxiliary Repair Tools |
Yes |
|
DIY Data |
Support |
|
Test report |
support |
|
Test report save |
yes |
|
Test report Customization |
yes |
|
Adverse Report |
support |
|
trouble code |
Support |
|
Maintenance Remind |
Support |
|
Screen Show |
19 inch LED display shows the inspection process, operation, test reports, bug reports |
|
3. Host control section Of Common Rail Test Equipment ZQYM 718A |
|
|
Chipset |
Intel ARM X9 |
|
USB port |
4 |
|
VGA port |
1 |
|
Operating system |
WindsCE |
|
Design standards |
Industrial control standards |
|
1000 hours pressure test |
Yes |
|
4. System filtration and protection Of Injector Pump Test Bench ZQYM 718A |
|
|
Clogging reminder system |
Yes |
|
Filters |
7 |
|
primary standard Filter |
2, Euro III standard |
|
secondary standard Filter |
5 ,Euro III standard |
|
Cooling method |
2 synchronous cooling |
|
Cooling system power |
160W |
|
Fuel Cooling method |
Electric cooling fan blades |
|
Radiator numbers |
2 sets |
|
Fuel tank |
Combined automatical classified tank |
|
Main tank capacity |
45L |
|
Auxiliary fuel tank |
10L |
|
5. Ancillary apparatus Of Diesel injection Pump Test stand ZQYM 718A |
|
|
Host voltage |
220V/380V |
|
Motor Power |
11kw |
|
Low pressure oil motor power |
1.5kw |
|
inverter |
11kw |
|
Stabilizer |
500VA |
|
Work Lights |
Yes |
|
mist eliminator |
Yes |
|
Access Switch for test chamber |
Yes |
|
Display |
19 inch LED screen |
|
6. Aids tool Of Common Rail Pump Tester ZQYM 718A |
|
|
Injector Test Fixture |
Yes |
|
Oil collector |
Yes |
|
Pump repair tool |
Yes |
|
Pump disassembly Tool |
Yes |
|
Injector repair tools |
Yes |
|
Injector disassembly tool |
Yes |
|
7. Update and warranty Of Testing Equipment ZQYM 718B |
|
|
Update method |
U disk update |
|
Warranty |
3 years |
|
Data add |
DIY manually add and U disk update |
|
Upgrade deadline |
Lifetime Free |
|
8. Packing Of Diesel Test Bench ZQYM 718A |
|
|
Dimensions |
1900*830*1600mm |
|
GW |
850KG |
|
NW |
800KG |
|
Packing |
Environmentally friendly packaging, export fumigation wooden plywood |
